WR200 Series

WR200 / WR210 Series

802.11b Multi-function
Outdoor Radio

Azuretec's WR200 series is an advanced device which incorporates IEEE 802.11b and bi-directional TDD technology with distant transmission range and outstanding receiver sensitivity. The WR200 series could operate in ISM2.4/5.8GHz frequency and provide flexibility to avoid air interference. The WR200 series could improve the transmission condition where access point or WLAN adapter card lacks the power to transmit long distance or encounters interference. The WR200 series could be used for Wireless Local Loop, backbone transmission for telecom operators, ISP vendors, Hot Spot, college campus, and enterprise branches or offices for wider coverage and better service quality. Designed for outdoor application, the WR200 series has adopted robust housing and waterproof measures for severe outdoor environment.

Benefits

	Long distance and outstanding sensitivity
	2400 ~ 2500 /5725 ~ 5875 MHz unlicensed Band
	High output power level up to 2W(33dBm) for 2.4GHz and 0.5W for 5.8GHz
	18 dBi receive gain
	IEEE 802.11b appliance
	WLL and backbone usage
	Cost-effective solution for telecom operator, enterprise, educational institute and government
	Waterproof housing

Specifications

Device Interface
Ethernet Interface : IEEE 802.3 100/10 Base T
( RJ-45 )
Wireless Network Connection
Standard: IEEE 802.11b
Frequency Range: 2400-2484 / 5725-5875 MHz
Data Rate : Supports up to 11 Mbps automatically
Throughput: Max 5Mbps
Emission Type: Direct Sequence Spread Spectrum
Channel : 11 channels
Modulation : BPSK / QPSK / CCK
Output power :
ISM 2.4GHz: 0.1W/0.5W/1W/2W
ISM 5.8GHz: 0.2W/0.5W
Protocols
Security: WEP Encryption 40-bit and 128-bit
Network: SNMP, TCP/IP, IPX/SPX, NetBEUI
Operating System Support
Supports Windows 98/2000/NT/XP
LED Indicator
Power, Act, Signal Strength

Network Architecture
PTP Connection ( point to point )
PTMP Connection ( point to multi-point )
Power Requirements
Input: AC 100-264V, 50-60Hz, 21W
Physical Description
ODU 280(L) × 230(W) × 116(H ); mm
2.8 kg
Operating Environment
Operating Temperature : -30~ 60°C
Storage Temperature : -40 ~ 70°C
Humidity: 5%~95﹪, non-condensing

Download
	Product Data Sheet
	Installation Guide
	User Manual	2.4GHz	5.8GHz
	Firmware	2.4GHz	5.8GHz
	Utility	2.4GHz	5.8GHz

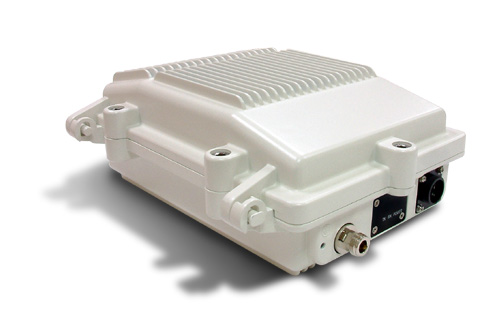

	Product Image

Ordering Information
Model No.	Description
WR201	WLAN 802.11b 2.4GHz 0.1W Outdoor Bridge / Hotspot
WR202	WLAN 802.11b 2.4GHz 0.5W Outdoor Bridge / Hotspot
WR203	WLAN 802.11b 2.4GHz 1W Outdoor Bridge / Hotspot
WR204	WLAN 802.11b 2.4GHz 2W Outdoor Bridge / Hotspot
WR211	WLAN 802.11b 5.8GHz 0.2W Outdoor Bridge
WR212	WLAN 802.11b 5.8GHz 0.5W Outdoor Bridge
WR201G	WLAN 802.11b/g 2.4GHz 0.1W Outdoor Bridge / Hotspot
WR202G	WLAN 802.11b/g 2.4GHz 0.5W Outdoor Bridge / Hotspot
