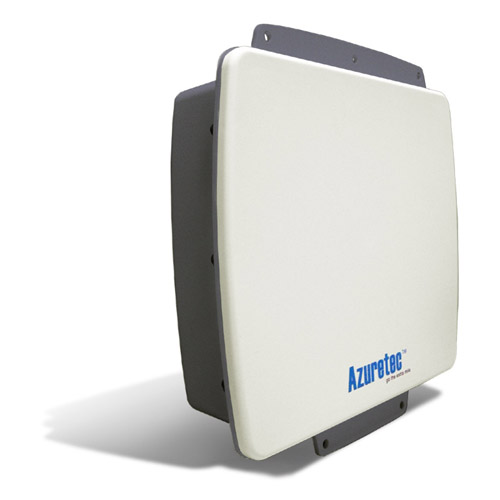

AUE200G Series

802.11g/b Multi-function Radio

Using advanced OFDM and power amp technology, the AUE200G series has high output power and amazing throughput even at long distance transmission. It operates at 2.4GHz band with 14+ non-overlapping channels. This 802.11g/b outdoor radio is an ideal solution for enterprise / campus connectivity, Hotspot and next-generation broadband wireless Access.

It¡¦s easier and more cost effective to deploy the wireless access environment with the Wireless Distribution System (WDS) technology. Saving 30% ~ 50% cost for telecom operators, ISPs and enterprises.

AUE200G series has powerful security management because it supports WEP 64 / 128 / 152 bits, 802.1x Authentication (EAP), MAC access control, disable broadcast the SSID, client isolation, WPA-PSK and WPA encryption. All these functions make the network much more reliable.

Benefits

Long distance and outstanding sensitivity, up to 80 km (Antenna Dependant)

Operating at 2.4GHz ISM Band
200mW / 1W / 3W output power
IEEE 802.11g/b appliance
WLL and backbone usage
Cost-effective solution for telecom operator, enterprise, educational institute and government .
Waterproof housing
Audible Antenna Alignment (Optional)
Specifications

Device Interface
Ethernet Interface : IEEE 802.3 100/10 Base T
( RJ-45 )
RF Interface: N Jack
Wireless Network Connection
Standard: IEEE 802.11g/b
Frequency Range: 2.4GHz
Throughput: Max 23Mbps (support super mode 108Mbps)
Emission Type: OFDM
Channel Bandwidth : 5MHz / 10MHz and 20MHz
Channel : 14+ non-overlapping channels
Modulation : 64QAM/16QAM/QPSK / BPSK
Output power : 200mW / 1W / 3W
Operating mode: AP / WDS (Bridge) / MESH (Optional)
Protocols
Security: WEP 64/128/152 bits; 802.1x Authentication (WEP); MAC access control; disable broadcast the SSID; client isolation; WPA-PSK and WPA encryption.
Network: SNMP, TCP/IP, IPX/SPX, NetBEUI
Operating System Support
Supports Windows 98/2000/NT/XP

Network Architecture
PTP Connection ( point to point )
PTMP Connection ( point to multi-point )
Repeater
Smart WDS
Manageablity
Management and setup: Web-based configuration
IP Routing: Enable anyIP
Ethernet: Static IP; DHCP client
Power Requirements
Input: AC 100-264V, DC 24V, 50-60Hz
Input: DC 48V (Optional)
Physical Description
ODU 259(L) ¡Ñ 250(W) ¡Ñ 75(H ); mm
AUE202G: 1.8 kg
AUE203G: 2.0 kg
AUE204G: 2.2 kg
Operating Environment
Operating Temperature : -30~ 55¢XC
Storage Temperature : -30 ~ 70¢XC
Humidity: 5%~95%, non-condensing
Certifications
EMS (EN301489, IEC 61000-4-5 (Surge))
Download
Product Data Sheet
Installation Guide
User Manual
Firmware

Product Image

  Ordering Information
Model No.
Description
AUE202G 2.4GHz, 0.2W 54Mbps Outdoor Bridge / Hotspot Radio, support g super mode
AUE203G 2.4GHz, 1W 54Mbps Outdoor Bridge / Hotspot Radio, support g super mode
AUE204G
2.4GHz, 3W 54Mbps Outdoor Bridge / Hotspot Radio, support g super mode
