Using advanced OFDM and power amp technology, the AU102A has high output power and amazing throughput even at long distance transmission. It operates at 5GHz band (5.15, 5.25, 5.47 and 5.725) GHz with 80+ non-overlapping channels.

Highly-powered with a total of 46dBm (EIRP) and the panel antenna-integrated design, this outdoor subscriber is ideal for enterprise / campus connectivity, distant point to point bridge or CPE of point to multi-point bridge.

The AU102A has powerful security management because it supports WEP 64 / 128 / 152 bits, 802.1x Authentication (EAP), MAC access control, disable broadcast the SSID, client isolation, WPA-PSK and WPA encryption. All these functions make the network much more reliable.

Long distance and outstanding sensitivity

Device Interface
Ethernet Interface : IEEE 802.3 100/10 Base T
( RJ-45 )
Wireless Network Connection
Standard: IEEE 802.11a
Frequency Range: 5GHz (5.15, 5.25, 5.47 and 5.725)
Throughput: Max 23Mbps
Emission Type: OFDM
Channel : 80+ non-overlapping channels
Modulation : 64QAM/16QAM/QPSK / BPSK
Output power (EIRP): 46dBm
Operating mode: AP / WDS (Bridge)
Antenna
Frequency: 5.150GHz - 5.875GHz
Gain: 23dBi
Beamwidth: H10; E10
VSWR: 1.7:1
Front to back ratio: 40dB
Impedance: 50ohms
Protocols
Security: WEP 64/128/152 bits; 802.1x Authentication (WEP); MAC access control; disable broadcast the SSID; client isolation; WPA-PSK and WPA encryption.
Network: SNMP, TCP/IP, IPX/SPX, NetBEUI
Operating System Support
Supports Windows 98/2000/NT/XP

Network Architecture
PTP Connection ( point to point )
PTMP Connection ( point to multi-point )
Repeater
Smart WDS
Manageablity
Management and setup: Web-based configuration
IP Routing: Enable anyIP
Ethernet: Static IP; DHCP client
Power Requirements
Input: AC 100-264V, DC 24V, 50-60Hz
Input: DC 48V (Optional)
Physical Description
335(L) × 335(W) × 81(H ); mm
2.9 kg
Operating Environment
Operating Temperature : -30~ 60°C
Storage Temperature : -40 ~ 70°C
Humidity: 5%~95%, non-condensing
Certifications
FCC; CE
EMS (EN301489, IEC 61000-4-5 (Surge))

Download
	Product Data Sheet
	Installation Guide
	User Manual
	Firmware

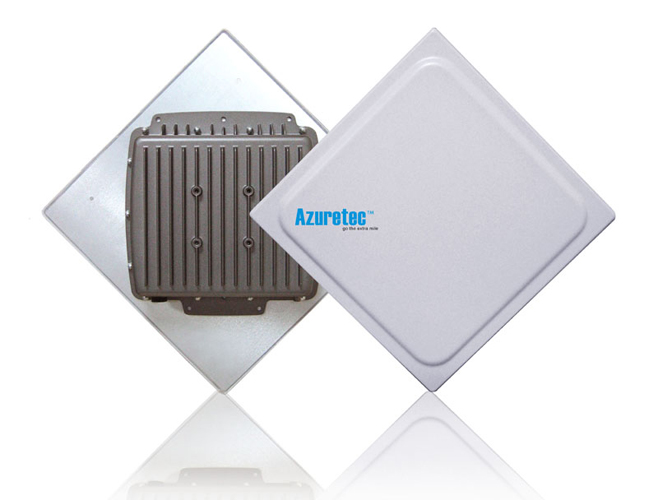

	Product Image
